DBA160

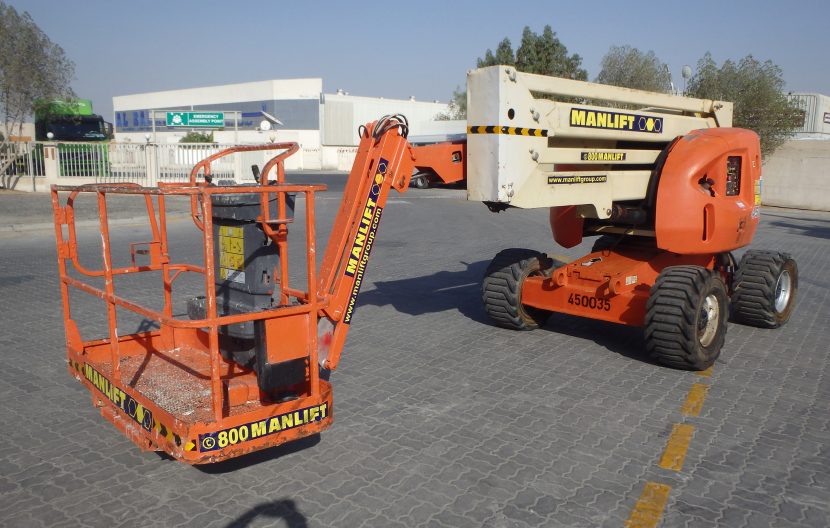

JLG 450AJ
Articulated Boom Lift – 16.0m Diesel
Ready to rent: our JLG 450AJ Articulated boom lifts provides a working height of 15,8 m and a maximum of 7,5 m horizontal reach. The maximum lift capacity for this JLG is 250 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
15,80 m
Outreach
7,50 m
Workload Capacity
250 kg
Own weight
6.495 kg
Consumption (average / h)
5.5 l/hour
CO2 emission (average / h)
20,29 kg
Platform dimensions (d x w)
1,83 x 0,76m
Transport dimensions (d x w x h)
6,58 x 2,36 x 2,27m
Max platform height
13,80 m
Max platform outreach
7,50 m
Up & over height
6,09 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads
Specification Sheet Manufacturer
JLG 450AJ Specification sheet EN.pdf
03 Feb 2024
BIM Model
MANLIFT-JLG-450AJ-HORIZONTAL_OUTREACH.ifc
13 Jun 2024
BIM Model
MANLIFT-JLG-450AJ-STOWED_POSITION.ifc
13 Jun 2024
BIM Model
MANLIFT-JLG-450AJ-VERTICAL_OUTREACH.ifc
13 Jun 2024
BIM Model
Construction_SiteConstruction_Riwal_JLG_450AJ.rfa
13 Jun 2024
Specification Sheet Manlift
MANLIFT_specsheet_JLG-450AJ_en_IN.pdf
13 Jun 2024
An upgrade in toughness and strength from the well proven
Do you have a job or project where you need an articulating boom lift? You can hire an articulating boom lift from Riwal on attractive price/quality terms. The articulating boom lift is perfect for jobs where there are obstacles at height and is also perfectly suitable for inside use. Have a look at our below listed wide range. Please do not hesitate to contact us if you need any advice. We’d be delighted to tell you more about the benefits of articulating boom lift rental!
