DBA160

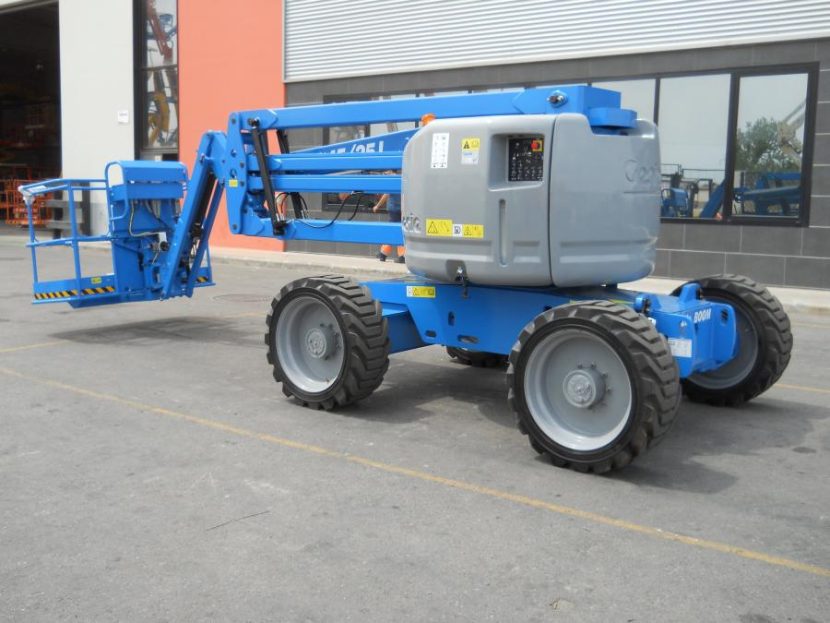

Genie Z45/25JRT
Articulated Boom Lift – 16.0m Diesel
A Z boom lift by Genie is one of the most flexible machines to work at heights, ideally used to work outdoor construction and industrial applications. Manlift offers highly reliable and well maintained boom lifts from Genie so that people can work safely.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
16,05 m
Outreach
8,19 m
Workload Capacity
227 kg
Own weight
6.123 kg
Consumption (average / h)
5.4 l/hour
CO2 emission (average / h)
14,42 kg
Platform dimensions (d x w)
0,76 x 1,83m
Transport dimensions (d x w x h)
6,65 x 2,29 x 2,13m
Max platform height
14,05 m
Max platform outreach
7,59 m
Up & over height
7,14 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads
An upgrade in toughness and strength from the well proven
The Genie Z45/25JRT articulating boom lift provides working height of 15.87 m provide lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none. Hydraulic rotation lets you move the platform where you need it. Self-leveling feature keeps the platform level through the entire range of motion. Genie Z45/25JRT diesel boom lift can be deployed in areas with little maneuvering space and on rough terrain.
