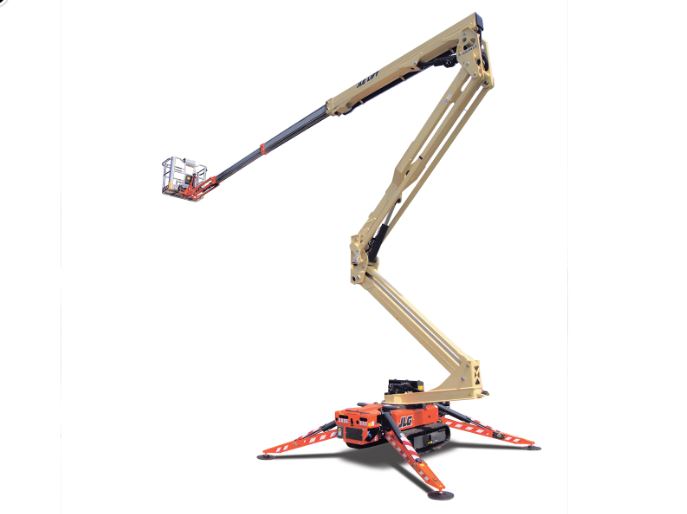

JLG X20J+E

Spider Lift – 20.0m Electric

The JLG X20J+E Spider lifts provides a working height of 20,1 m and a maximum of 9,7 m horizontal reach. The maximum lift capacity for this JLG is 230 kg.

Rent this machine

Need help with rental?
Safety gear required
Technical data
Driving propulsion
Electric
Working height
20,10 m
Outreach
9,70 m
Workload Capacity
230 kg
Own weight
2.840 kg
Platform dimensions (d x w)
1,34 x 0,69m
Transport dimensions (d x w x h)
5,00 x 1,48 x 2,00m
Max platform height
18,10 m
Max platform outreach
9,90 m
Up & over height
8,20 m
Recommended number of people
2
Maneuvering at height
No
Gradeability
28,70 %
Charging voltage
220-240 V
Usage
Outdoor, Indoor
Lifting Propulsion
Electric
Diagram
Downloads

An upgrade in toughness and strength from the well proven

Riwal has an extensive rentals fleet. We have a very broad range of spider lifts, and can provide companies in various industries with the right spider lift. Our spider lifts are low in weight and, thanks to caterpillar tracks, can be deployed in virtually any location. The most suitable spider lift for you depends on the reach you need to achieve.
