DBA160

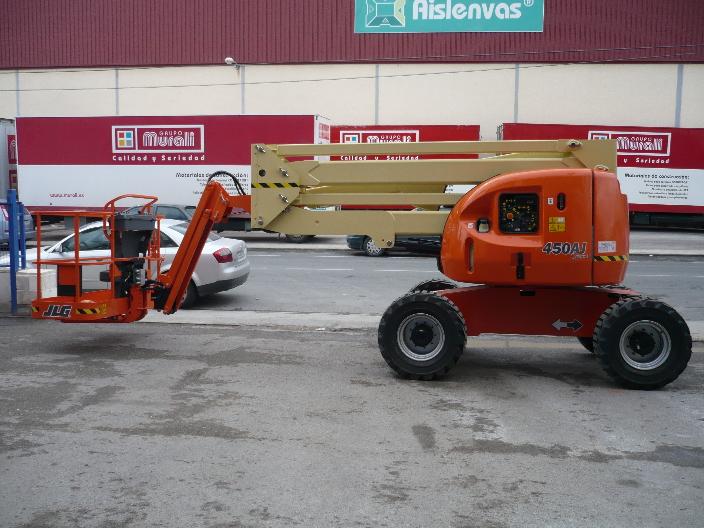

JLG 450AJSII
Articulated Boom Lift – 16.0m Diesel
Ready to rent: our JLG 450AJSII Articulated boom lifts provides a working height of 15,77 m and a maximum of 8,27 m horizontal reach. The maximum lift capacity for this JLG is 230 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
15,77 m
Outreach
8,27 m
Workload Capacity
230 kg
Own weight
6.220 kg
Consumption (average / h)
5.6 l/hour
CO2 emission (average / h)
20,29 kg
Platform dimensions (d x w)
1,83 x 0,76m
Transport dimensions (d x w x h)
6,71 x 2,34 x 2,29m
Max platform height
13,70 m
Max platform outreach
7,70 m
Ground clearance
0,36 m
Drive speed
7,20 km/u
Fuel tank
62,50 L
Up & over height
7,32 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads
An upgrade in toughness and strength from the well proven
The JLG 450AJSII articulating boom lift provides working height of 16 m with great deal of flexilblity. Articulating boom lifts are designed to reach up and over an object, they have one or even two articulating joints in the main boom enabling the machine to have a large outreach potential. JLG 450AJSII is an electric boom lift and it is highly recomended to perform indoor operations at heights. An electric boom lift follow zero-emission policy and protect the enviroment and its non-marking tyres prevent the floor from damage.
